  • Drill, saw and pick resistant
  • Case hardened shackle available either in alloy steel for improved bolt cutting resistance or carbon steel
  • Lock mechanism is protected on all sides by case hardened steel
  • Operated with Mul-T-Lock patented cylinder for maximum security
  • Master keyed, '3 in 1', Interactive® options available

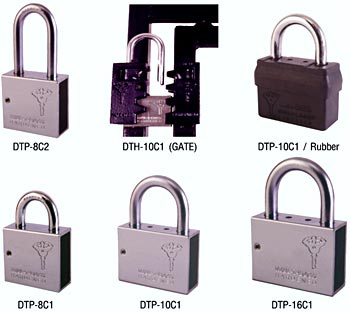

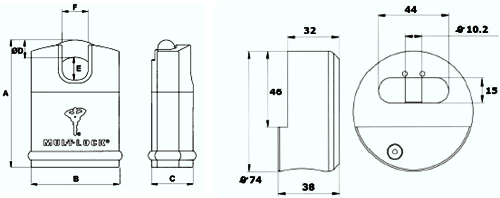

Model ØA (mm) B C D E F
DTP-8C1 7.9 50 22 22 22 47
DTP-8C2 7.9 50 50 22 22 47
DTP-10C1 9.5 63 30 22 33 47
DTP-16C1 15.8 92 50 32 38 53

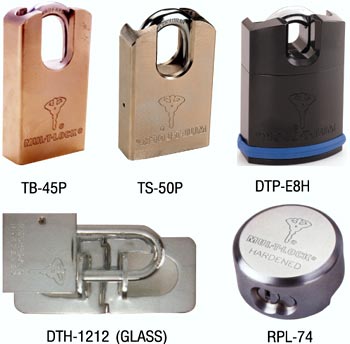

Model A(mm) B C ØD E F
TB-45P 85 45 20 8 27 19
TS-50P 86 50 20 10 27 20
DTP-E8H 84 52 33 8 15 16
